Leak-Proof Roofs & Basements with D-Shield Bituminous Membrane
Bituminous membrane waterproofing is a highly effective solution for protecting buildings in Bangladesh from rain, humidity, and leakage issues. Moreover, it forms a seamless waterproof barrier on concrete roofs, basements, and foundations. Therefore, it is widely used in residential, commercial, and industrial projects.
At Fountech, we deliver durable waterproofing systems designed for long-term performance. In addition, our solutions help reduce repair costs and structural damage caused by water seepage, especially during monsoon seasons.
What is Bituminous Membrane Waterproofing?
Bituminous membrane waterproofing is a durable system made of modified bitumen sheets. Moreover, it forms a seamless protective layer over concrete surfaces that effectively prevents water penetration and leakage issues in buildings.
In Bangladesh, heavy rainfall and high humidity often damage structures; therefore, this system is highly effective for long-term protection. It is commonly applied using the torch-on method to ensure strong bonding with the surface. Additionally, it is suitable for both new construction and repair projects. Thus, it delivers reliable, long-lasting moisture protection for residential, commercial, and industrial buildings across different environmental conditions.
Looking for a liquid-applied alternative? Explore our polyurethane waterproofing, cementitious waterproofing and acrylic roof coating solutions, or combine the membrane with a heat insulation coating for cooler roofs.
Types of Bituminous Membrane Waterproofing
Self-Adhesive Bituminous Membrane (1.5 mm): Features a factory-applied pressure-sensitive adhesive layer protected by a release liner. Cold-applied without heat, making it ideal for enclosed spaces, basements, and fire-sensitive environments.
Torch Applied Bituminous Membrane (3 mm or 4 mm): Applied using an open-flame torch to heat the underside of the membrane, creating a fused bond to the prepared surface. Highly durable and suitable for heavy-traffic or exposed roof decks.
D-Shield Bituminous Membrane Products
Choose from our self-adhesive and torch-applied D-Shield membranes in 1.5mm, 3mm and 4mm thicknesses – reliable waterproofing for roofs, basements and concrete structures.
D-Shield 1.5mm
1.5mm Self-Adhesive (Cold Applied) Membrane
Self-adhesive Bituminous Membrane D-Shield 1.5mm. HDPE and double-layer cross-laminated polymer-modified bituminous membranes are used for roof, basement, and concrete waterproofing.
1m x 20m Roll
190 SFT Per 1 Roll
D-Shield 3mm
3mm Torch-On Membrane for Residential Roofs
Torch Applied Bituminous Sheet D-Shield 3mm reinforced polymer modified bituminous concrete waterproofing membrane.
1m x 10m Roll
107 SFT Per Roll
D-Shield 4mm
4mm Heavy-Duty Torch-On Membrane for Exposed Roofs
Torch Applied Bituminous Membrane D-Shield 4mm fiber reinforced polymer modified bituminous/bitumen concrete waterproofing membrane and best waterproofing price in Bangladesh
1m x 10m Roll
107 SFT Per Roll
Bituminous Membrane Price in Bangladesh
Current set prices for our D-Shield bituminous waterproofing membranes, with pack size and coverage per roll.
* Prices are per roll and may vary with order quantity and market conditions. See our full product & price list or contact us for the latest quotation.
Advanced Membrane Technology for Waterproofing
Bituminous waterproofing membranes offer excellent adhesion, flexibility, and long-lasting protection against cracks, rainwater seepage, UV exposure, and environmental damage.
Benefits of Bituminous Membrane Waterproofing
- Monsoon-Ready Defense: Creates a completely seamless, impenetrable barrier that easily withstands Bangladesh’s heaviest tropical rainfalls.
- Superior Elasticity: Stretches and flexes without cracking to accommodate structural shifting and concrete thermal expansion.
- Long-Term Durability: Provides up to 20 years of maintenance-free performance, maximizing the lifespan of your property.
- Powerful Concrete Adhesion: Bonds aggressively to substrates to prevent underground water migration and baseline dampness.
- High Chemical Resistance: Protects structural foundations against aggressive groundwater chemicals, salts, and soil acids.
Usage Areas of Bituminous Membrane
- Rooftops & Podiums: Shields flat residential, commercial, and industrial concrete roofs from standing rainwater and intense tropical heat.
- Basements & Retaining Walls: Prevents lateral water ingress and rising dampness in deep multi-story underground foundations.
- Water Storage: Provides safe, non-toxic, and high-pressure water sealing for concrete reservoirs and pools.
- Bathrooms & Wet Areas: Isolates internal moisture beneath tiles to eliminate ceiling dampness and mold in floors below.
- Bridges & Car Parks: Withstands heavy vehicle loads and chemical spills on exposed bridge decks and parking structures.
Application Process of Bituminous Membrane Waterproofing
Fountech follows a 6-step process to install bituminous membrane waterproofing on roofs, terraces and basements:
- Surface Preparation: The concrete surface is cleaned properly to remove dust, oil, loose particles, and damaged materials.
- Crack and Joint Repair: All visible cracks, holes, and construction joints are repaired before membrane installation.
- Primer Application: A bituminous primer is applied to improve bonding between the surface and waterproof membrane.

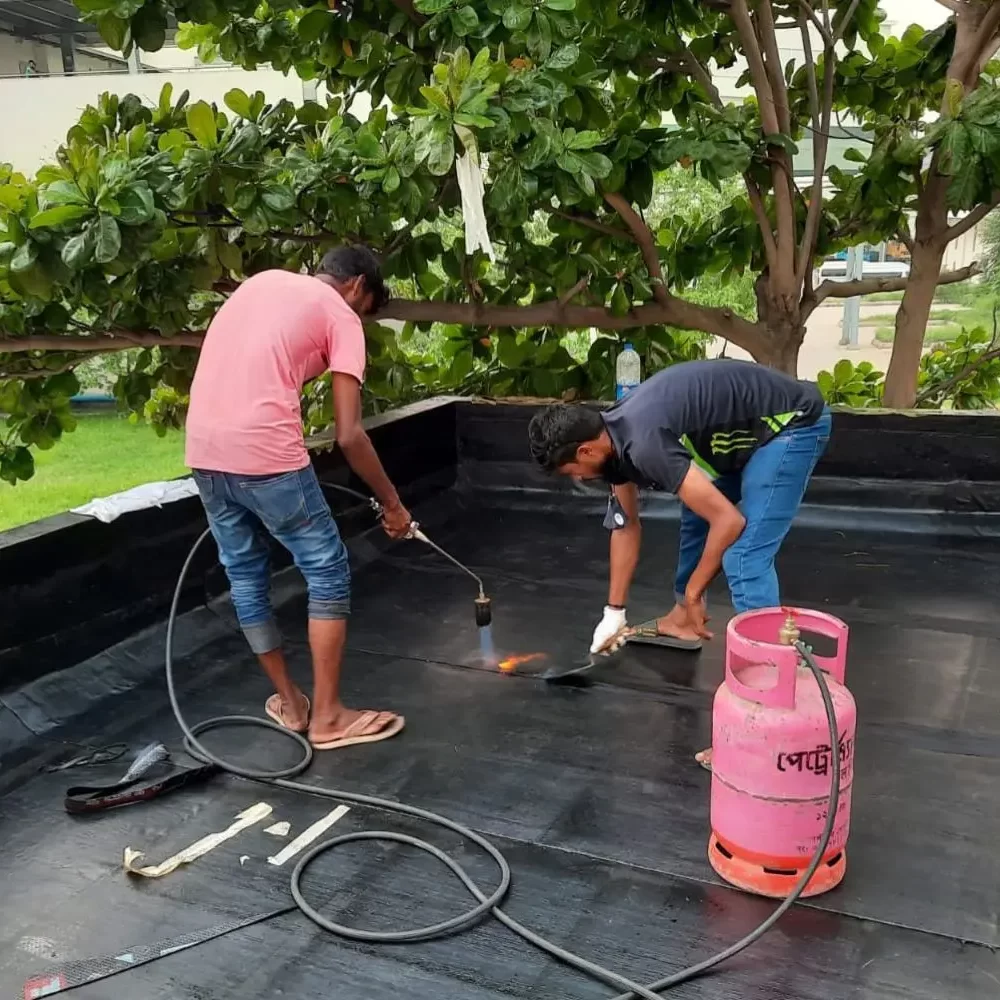

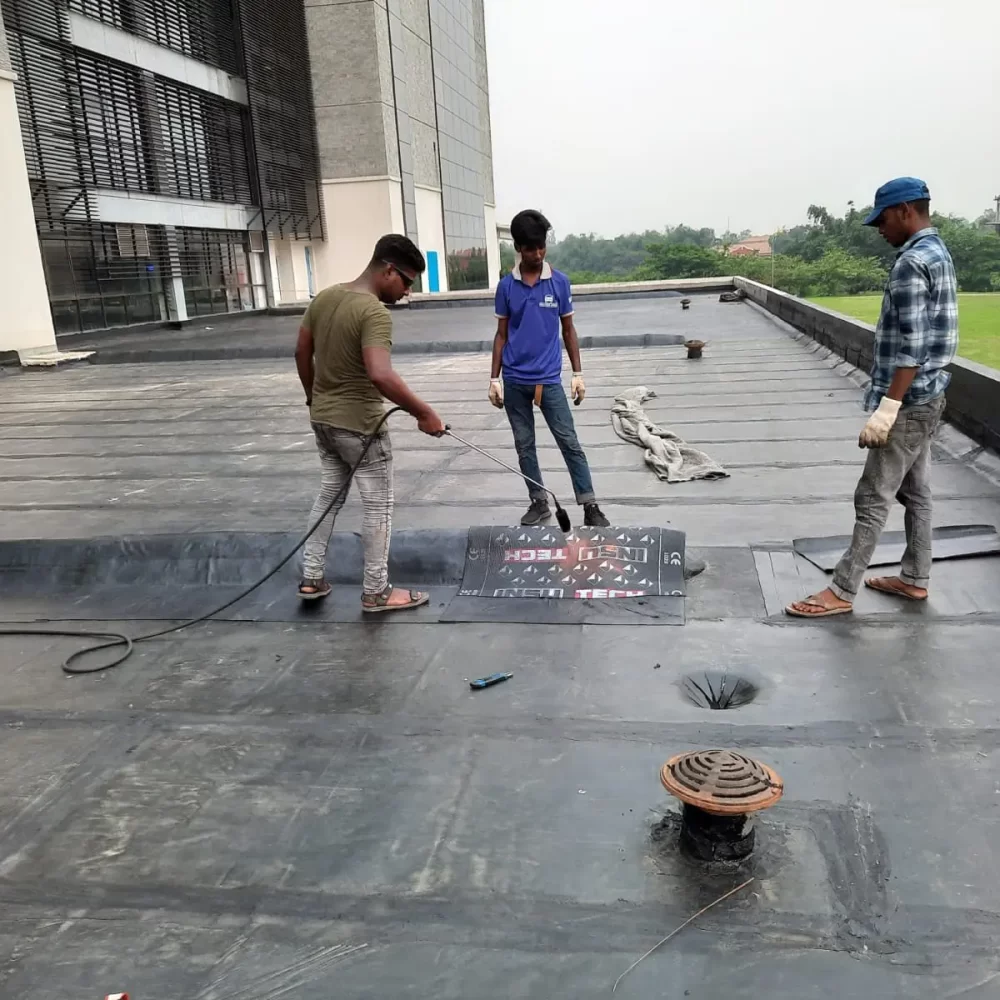

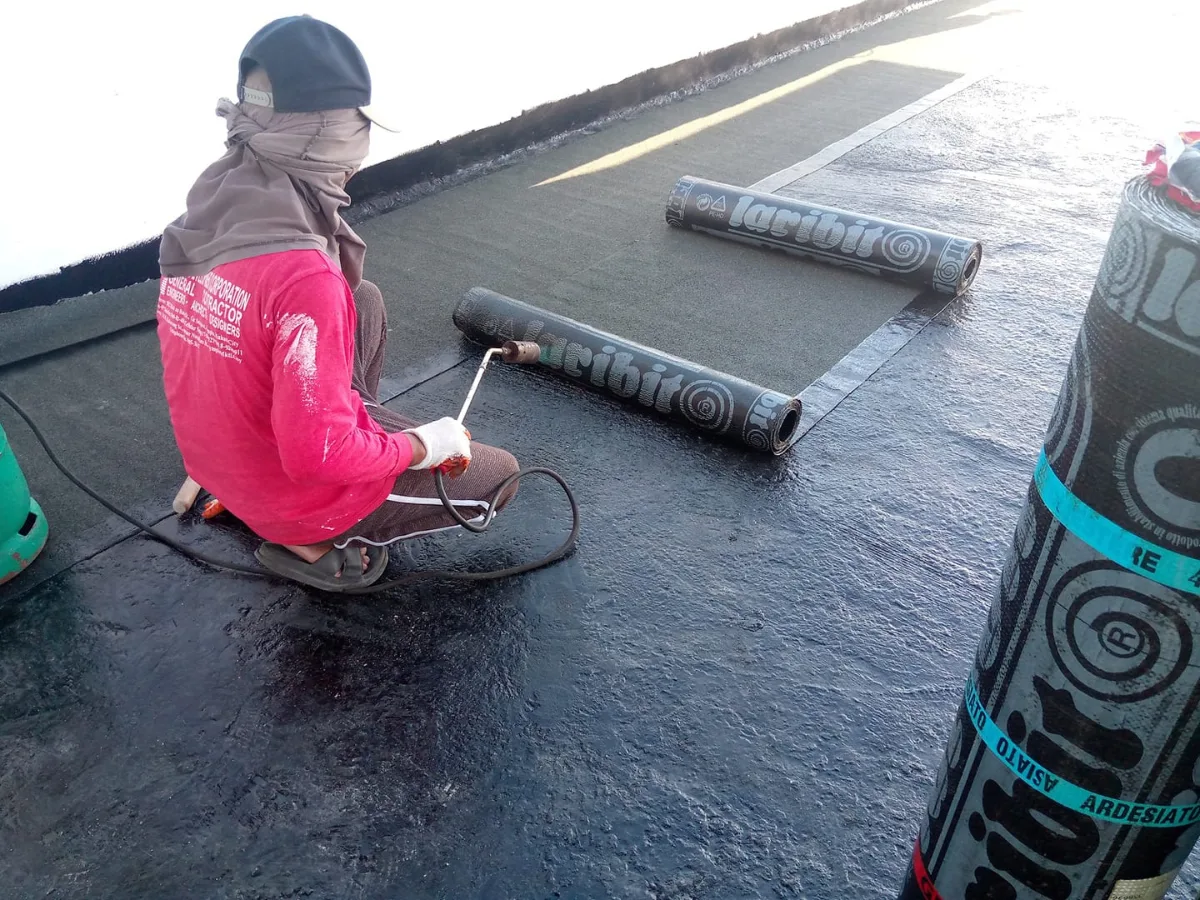

- Membrane Installation: The torch-on bituminous membrane is carefully applied using heat to create a strong waterproof layer.
- Overlap Sealing: All overlaps and joints are sealed properly to prevent water penetration.
- Protective Layer: Depending on the project requirement, a protective screed or finishing layer may be installed above the membrane.
Why Choose Fountech for Bituminous Waterproofing?
Established in 2006, Fountech has been at the forefront of providing advanced construction chemical solutions across Bangladesh. Over the last two decades, we have continuously refined our field expertise to address the unique engineering challenges of the local market.
Consequently, we have successfully executed more than 2,000 diverse projects, ultimately protecting over 15 million square feet of structural space nationwide. Because of this extensive track record, we possess the precise technical knowledge, premium-grade materials, and skilled labor force required for complex installations.
Therefore, we are uniquely equipped to engineer high-performance waterproofing systems specifically designed to endure the intense demands of Bangladesh’s harsh tropical climate.
See our completed waterproofing projects across Bangladesh.
Frequently Asked Questions
What is bituminous membrane waterproofing?
Bituminous membrane waterproofing is a roofing and below-ground protection system that uses factory-made sheets of polymer-modified bitumen. The sheets are either torch-fused (3mm and 4mm) or self-adhered (1.5mm) to concrete, forming a continuous, seamless barrier that stops rainwater, seepage and dampness on roofs, terraces, basements and foundations.
Is it suitable for Bangladesh?
Yes. Bituminous membrane is one of the most reliable waterproofing systems for Bangladesh. It handles heavy monsoon rain, standing water on flat roofs, high humidity and strong summer heat, and its elasticity lets it flex with concrete thermal movement without cracking.
How long does it last?
A properly installed bituminous membrane can last up to 20 years. Actual service life depends on membrane thickness (4mm lasts longer than 3mm on exposed roofs), surface preparation, overlap sealing, and whether a protective screed or coating is applied over it.
Where can it be used?
Bituminous membrane can be used on flat concrete roofs and rooftops, terraces and podiums, basements and retaining walls, foundations, water tanks and reservoirs, bathrooms and wet areas, and bridge decks and car parks.
What is the cost of bituminous waterproofing?
D-Shield bituminous membrane rolls cost BDT 4,500 – 9,000 per roll in Bangladesh: 3mm (BDT 4,500 – 5,000, 107 sft), 4mm (BDT 6,000 – 6,500, 107 sft) and 1.5mm self-adhesive (BDT 8,500 – 9,000, 190 sft). That is roughly BDT 42 – 61 per sq ft for material. The total project cost also depends on roof area, surface condition and installation; contact Fountech for a site-specific quotation.
What is the difference between torch-on and self-adhesive bituminous membrane?
Torch-on membrane (3mm or 4mm) is melted onto the surface with a gas torch, creating a fused, very durable bond that suits exposed roofs and heavy-traffic decks. Self-adhesive membrane (1.5mm) is cold-applied by peeling off a release liner, so no flame is needed, which makes it ideal for basements, wet areas and fire-sensitive or enclosed spaces.
Which thickness should I choose: 1.5mm, 3mm or 4mm?
Choose 1.5mm self-adhesive for basements, bathrooms and areas where open flame is not allowed. Choose 3mm torch-on for most residential roofs and terraces that will get a protective screed or tiles. Choose 4mm torch-on for exposed, commercial or industrial roofs that need maximum durability.
Can bituminous membrane be applied on an old, leaking roof?
Yes. On an existing roof the surface is cleaned, loose plaster and damaged areas are removed, cracks and joints are repaired, and a bituminous primer is applied before the membrane is installed. Proper preparation is the key to a leak-free result on old roofs.
Can bituminous waterproofing be done during the rainy season?
Installation needs a clean, dry surface, so membrane work is done on dry days and wet concrete is allowed to dry first. It is best to complete roof waterproofing before the monsoon starts; urgent work during the rainy season is planned around weather breaks.
